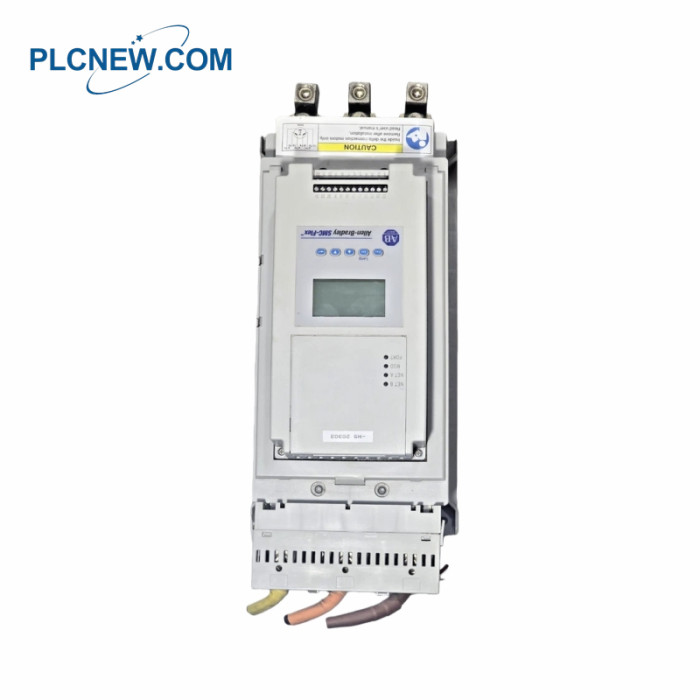

150-F135NBR SMC Flex Smart Motor Controller

150-F135NBR SMC Flex Smart Motor Controller

Specifications

The 150-F135NBR is an SMC Flex Smart Motor Controller. This bulletin 150 motor controlling device is expected to work

with high-power motors with up to 100 HP rating. The input line voltage of this device is 200 to 460 Volts AC, 3-phase,

at 50 to 60 Hertz. It can manage a 135 A output current at 460 Volts AC. For control purposes, you can use 24 Volts

AC/DC voltage on this device. This device is applied to control motors in a way to save energy and reduce mechanical

stress to the motor and devices connected to it; this is done by applying seven different motor starting algorithms with

the 150-F135NBR smart motor controller. The device is installed in large pump and fan applications, but it can be

incorporated into other motor uses where motor starting is crucial and not its speed control. The 150-F135NBR

provides various breaking options, although none of these options should be used as an emergency stop option.

SMB Smart Motor Braking is conducted by applying a braking current of 150 to 400% of a full-load current to a motor.

The slow speed with breaking method reduces speed greatly and waits for motor coming into the desired position when

it is stopped. The Accu-stop method reduces speed and when the controller gets stop signal breaking torque is applied.

Users can use 150-F135NBR SMC at -5 to 50 degree Celsius (23 to 122 degree Fahrenheit) operating temperatures and

store them at –20 to 75 degree Celsius temperatures. The shipping weight of this item is 15 kilograms (33 pounds). The

device comes in an open enclosure and its dimensions are 443.7 millimeters (17.47 inches) X 196.4 millimeters (7.74 inches)

x 205.2 millimeters (8.08 inches).

Product Applications

Oil and Gas: Used to control heavy-duty transfer pumps and compressors. Soft start effectively reduces fluid hammer

(water hammer effect) in pipelines.
Water and Wastewater Treatment: Drives large centrifugal pumps and submersible pumps, avoiding sudden pressure

changes in the pipeline network.
Mining and Material Handling: Starts heavy-duty conveyors, crushers, and fans, significantly reducing mechanical wear

and grid voltage drop.
Pulping and Paper: Controls high-inertia mixers and blowers.
Power and Energy: Smooth start and stop of auxiliary equipment such as circulating water pumps and cooling tower fans.
