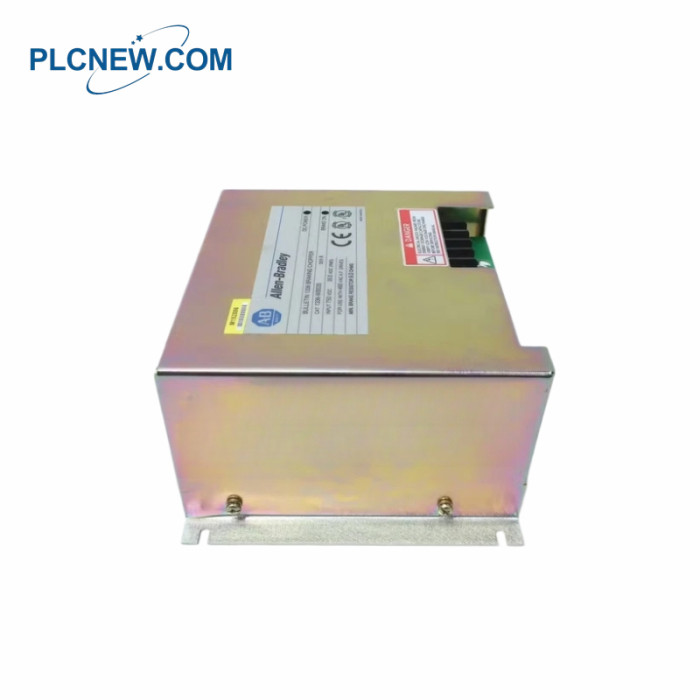

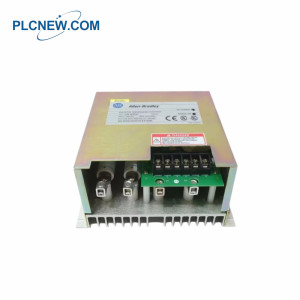

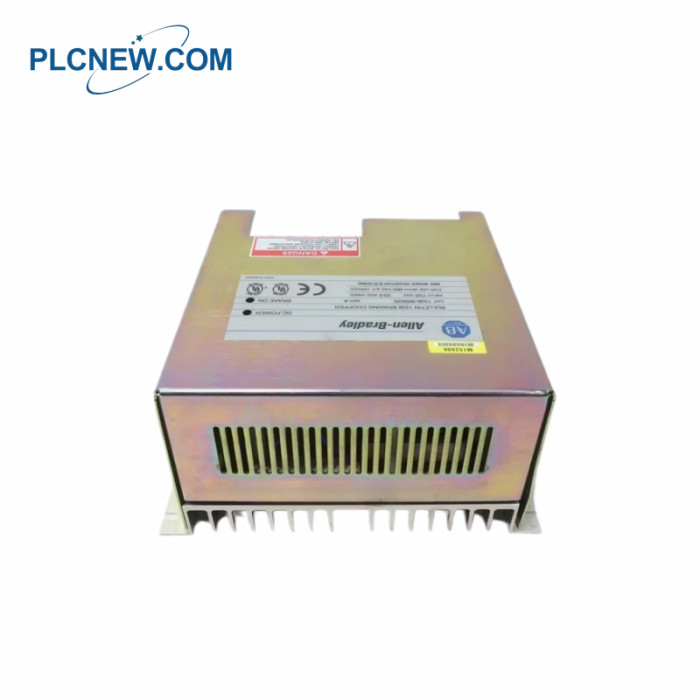

1336-WB035 Dynamic Brake Chopper
Specifications
|
Part Number |
1336-WB035 |
|
Weight |
3.77 kg |
|
Rated Voltage |
380/415/460V AC |
|
Rated RMS Current |
35 A |
|
DC Bus Turn-on Voltage |
750 V DC |
|
Max Output Power Dissipation |
115 W |
|
Chopper Transistor |
IGBT |
|
Min Brake Resistor |
9 Ω |
|
Initial Contact Resistance |
≤100 mΩ |
|
Applicable Altitude |
1000 m |
|
Humidity |
5%~95%, non-condensing |
|
Storage Temperature |
-40°C ~ +70°C |
The 1336-WB035 from serves as a dynamic brake chopper, focusing on enhancing the performance of power
systems. Accepting nominal voltages of 380, 415, and 460 volts AC, it is engineered to manage a rated RMS current
of 35 Amperes. This component plays a critical role in controlling deceleration in machinery, contributing to safer
and more efficient operations.
A notable feature is its chopper transistor, which utilizes Insulated Gate Bipolar Transistor (IGBT) technology to regulate
current effectively. The device is built to handle a DC bus turn-on voltage set at 750 volts DC while ensuring maximum
output power dissipation at 115 watts. The minimum brake resistor value is specified at 9 ohms, optimizing
performance during braking.
Product Applications
Metallurgy and Mining: Braking control for large rolling mills, winches, and conveyor belts.
Petroleum and Chemical Industry: Emergency stopping and precise deceleration of large inertial loads (such as
centrifuges, mixers, and pumps).
Crane and Port Machinery: Providing stable regenerative energy discharge during crane lifting and lowering, ensuring
smooth and safe system operation.
